And related to the recommended: 【NC straightening machine, straightening machine accessories】 CNC straightening machine specifications, straightening machine parts specifications is Luoyang Hong special machinery and equipment Co., Ltd.'s main business, our company was originally China South Locomotive Group Luoyang Locomotive Works Repair machine factory, in 2004 according to the relevant provisions of the state restructuring for the Luoyang Hong special machinery and equipment Limited. The company mainly for the steel straightening cutting machine manufacturing sales, machinery and equipment overhaul, non-standard equipment manufacturing. The company is strong in technology, well-equipped, high technical staff quality. The company developed high-efficiency steel straightening cutting machine has reached the advanced level of similar foreign products, high efficiency, good quality, by domestic and foreign steel dealers, steel welded wire mesh production enterprises, steel distribution centers and other users of praise. Products have been exported to Laos Myanmar Southeast Asia, Taiwan and Europe. Welcome friends from all walks of life patrons, visit the guide.
CNC straightening machine / straightening machine accessories for more information
CNC straightening machine Brand: Hong special
Model: TW series
CNC straightening machine product alias: steel straightening machine
Product use: steel straightening and cutting cut
CNC straightening machine type: steel straightening machine
CNC straightening machine / straightening machine accessories product use
CNC straightening machine for cold-rolled round / cold-rolled ribbed, hot-rolled round / hot-rolled ribbed steel bar straightening and cutting cut, suitable for railway construction bridge factory, steel dealers, steel welded wire mesh production Enterprises, steel distribution center, cold-rolled ribbed steel factory and other enterprises.
CNC straightening machine / straightening machine accessories technical parameters

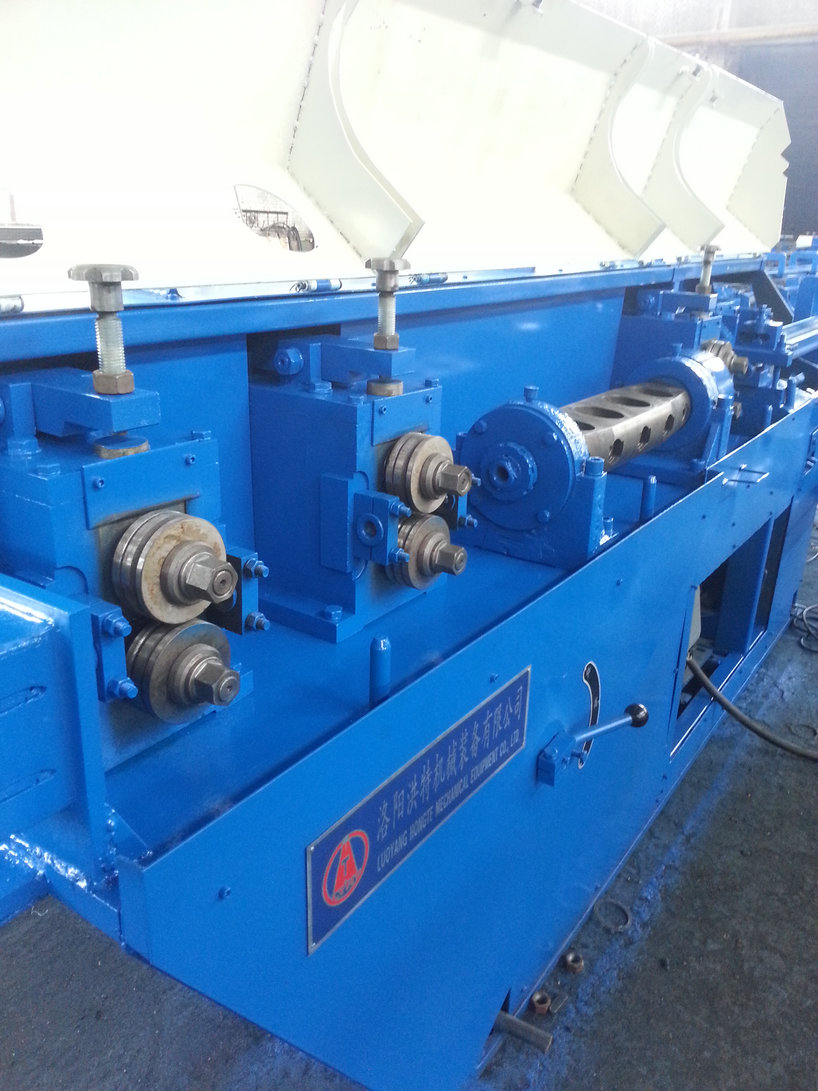

The Operation Principle of NC Straightening Machine / Straightening Machine
The motor through the belt drive speed, so that the high-speed rotation of the barrel, through the straightening of the steel bar is straightened by the straightening mold to remove the steel surface of the rust; by the motor through another pair of slow belt drive and gear box, a Side drive two pressure roller, traction steel forward movement, on the other hand drive crank wheel, so that the hammer up and down movement. When the steel bar to adjust to the length of a predetermined length, hammer hammer on the knife, the steel cut off, cut off the steel into the receiving frame, due to the role of spring, knife back to the original position to complete a cycle.
CNC straightening machine / straightening machine accessories products
